Dimension(HxBxL): 540 x 165 x 320 mm
ABOUT AIR PURIFIER
It is an effective and user friendly air purifier with a clean air delivery rate (CADR) of 220 m3 / h with a coverage area upto up to 430 sq. Ft. which is equal to a bedroom. This air purifier takes just 15 minutes to remove air pollutants from the room. It keeps the indoor air free from the pollutants like unpleasant odor, dust and allergens. The air purifier also protects from diseases that are caused by bacteria and virus. It enhances the function of cardiovascular system of the body by increasing brain oxygen. One can ensure that the irritation induced by pet hair or cooking & paint fumes is avoided.

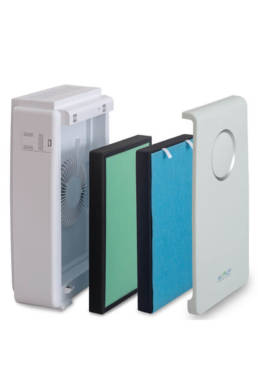

Air Concept’s highly efficient 7 stages air purification technology which includes 1. Pre Filter -1, 2. Pre Filter -2, 3. ACF, 4. HEPA, 5. Zeolite, 6. Photo Catalyst Filter and 7. Anion Release
Apart from providing fresh air, the model also releases negative ions which are generally found near waterfalls, forest and mountains and keep you and your family fresh and vitalized. The air purifier comes with an easy to operate touch panel.
- 3 grades of wind speed control, large flow rate rapidly purifies indoor air
- 1-4 Hrs Timer with Sleep Mode function
- Negative anion releasing 10 Million Ions/cm3
- 7-Stage Purifying : 1. Pre Filter -1, 2. Pre Filter -2, 3. ACF, 4. HEPA, 5. Zeolite, 6. Photo Catalyst Filter and 7. Anion Release
- Hi efficient Motor– Quiet , low electricity consumption and 30,000 hours life time.
|Model||AC – 220|
|Clean Air Delivery Rate||220 m3/hr|
|Weight||Net Weight = 5 Kgs|
Gross Weight = 6.3 Kgs
|Power & Voltage||40W|
|Noise||≤ 61dB (A)|
|App Area||up to 430 sq. Ft.|
|Way OF Control||Touch Panel Control|
|Filter Change Indicator||–|
|Grades of Wind Speed||3 Grades|
|Products Size||340*162*536 -(L*W*H)(MM)|
|Motor Type||Resin Sealed|
|High Efficient True Hepa||0.01 micron|
|Filter Details||1st Compounded Filter: Coldcatalyst Net & Honeycomb Active Carbon Net|
2nd Compounded Filter: Antibacterial and Antiviral nonwoven fabric Net & 0.01um High efficient HEPA
|Product Functions||• Remove 97% odors, tobacco smoke, fume, food smell, beverage smell, pet smell.|
• Eliminate 99.7% dust, pollen, allergy, mold
• Remove 99.9% formaldehyde, benzene and other TVOC
• Kill bacterial, virus, germs
• Help you breathe and sleep better and improve human immunity.
• Clear static, restore the body’s activity
• Increase brain oxygen, and enhance the function of the cardiovascular system
|Purification Process||Composite Filter mesh can firstly filter out large contamination particles such as hairs and pet hairs and then can effectively remove minor contamination particles such as PM2.5 and smog through high efficient HEPA filter mesh, Next, it can filter out mites and allergen through anti-mite and anti- allergic filter mesh among which activated carbon can effectively filter out harmful gas such as formaldehyde and benzene and strongly remove peculiar smell and foul smell, while negative oxygen ion generator can release much negative oxygen ion to refresh room air.|
|Product Name:||Air Purifier|
|Rated Voltage:||220 V- 50 Hz|
|Rated Frequency:||50/60 HZ|
Primary Filter -1
There are lot of contaminants like particles of dust, pet dander and other allergens. They are captured by Pre-Filter. This helps in increasing the longevity of HEPA filters. Pre-filter removes the bigger particles and protects the HEPA filter from clogging. The main function of pre-filter is to reduce expenses that can result from clogging of HEPA filter.
Primary Filter -2
Filtered the air dander and the larger volume particles, regular maintenance cleaning filter can effectively extend the life and increase the purifying efficiency.
High Efficiency HEPA Filter
The precision of the HEPA filter is 0.01 micron, and is able to eliminate particles which are larger than 0.01 micron, with the filtration rate of 99% or more. Dust, bacteria, fungi, viruses, allergens, and other small and tiny particles are not able to get through the HEPA filter.
Activated Carbon Filter
The treatment of carbon with oxygen opens up multiple tiny pores on the surface of the carbon. The pores are so much in number, that one pound of activated carbon provides 60-150 acres of surface area. It works on the concept of adsorption. The gas elements bond with the surface of solid. Activated carbon is the solid material, which adsorbs air pollutants that are 60% of its weight. Once they are absorbed by filters, the purified air leaves from the other side. Activated Carbon carries high efficient additives. It has good adsorption and dust collection characteristics.
Media is added with Activated Carbon to adsorb such gases and reduce allergy problems. It can be used to dry sports shoes, reduce moisture and is commonly used to adsorb cigarette odours. A very useful carpet cleaner had zeolite as its base material.
Photo Catalyst Filter
- The cold catalyst will play a catalyst effect in normal living environment without any external assistance like UV light, sunlight, high temperature, or pressure.
- It catalyses the formaldehyde, ammonia, benzene, TVOC, hydrogen sulphide, and other harmful gases to work with oxygen, and then decompose them into water and carbon dioxide.
- The cold catalyst itself does not change during the decomposition action, thus the cold catalyst is long lasting and can be valid up to 5 years.>
- The main ingredients of the catalyst are food and medicine addictives. Therefore, the product is of non-toxic, non-corrosive, and non-inflammable. It works under normal condition and produces only water and carbon dioxide.
- The cold catalyst can be used to deal with formaldehyde, ammonia, benzene, TVOC, hydrogen sulphide, and other harmful gases released by plywood, furniture, wallpapers, carpets, curtains, and bedspreads
The ionizer releases large amount of anions and makes the oxygen negatively-charged, thus gathering the positively-charged particles like floating dust, bacteria, viruses, and smoke. The particles become denser and stick to the ground. The smaller the particle size, the higher the capture rate
